Sleek wall-mounted units not only provide cooling and heating to your room, but they also monitor room conditions and adjust their fan speed to fine-tune your comfort.

Zoned Comfort

Wall-mounted units independently manage the comfort of a single room and can maintain the precise temperature you set.

Improved Air Quality

Advanced filtration features deodorize and purify the air in your home, contributing to better health.

Remote Operation

You can monitor and adjust your system with a remote control, or create programs and schedules from your smartphone or tablet when using a wireless interface.

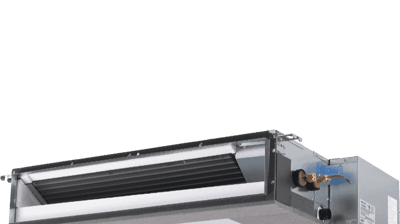

New home construction is the perfect opportunity to take advantage of the efficiency and unique design of Mitsubishi Electric Zoned Comfort Solutions™. Our horizontal-ducted units use less ductwork than traditional systems and can be hidden either above the ceiling or below the floor.

Out of Sight

By utilizing short-run, low-profile ductwork, these units can be concealed in a ceiling or below the floor.

Automatic Mode Changes

Systems can automatically change between cooling and heating modes to maintain consistent temperatures.

Whisper-Quiet Operation

Indoor units operate as quiet as a whisper. Your comfort lets you know the system is working even though you won't hear it.

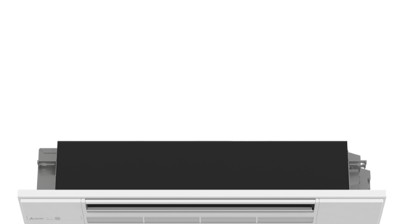

The MLZ-KP EZ FIT® Ceiling Cassette recesses between the ceiling joists providing a clean flush-mount appearance. The slim body design fits into shallow ceiling cavities making the EZ FIT a popular selection for room upgrades or new construction projects.

Multi-Way Airflow

With high/low ceiling airflow settings and automatic vane control, you can personalize the room's air to your desired comfort level.

Improved Air Quality

Help protect the health of your family with advanced filtration features that ensure better, fresher air in your home.

Remote Operation

You can monitor and adjust your system with a remote control or from your smartphone/tablet.

With wider air distribution and a less obtrusive style, these indoor units blend well with your ceilings and don't require ductwork.

Multi-Way Airflow

With vents that can be adjusted remotely on all four sides individually, you can direct the airflow to precisely where it's needed.

Improved Air Quality

Help protect the health of your family with advanced filtration features that ensure better, fresher air in your home.

Remote Operation

You can monitor and adjust your system with a remote control or from your smartphone/tablet.

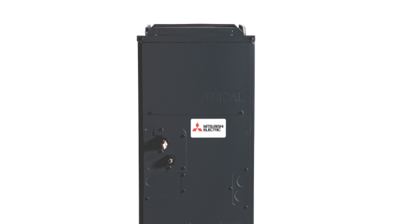

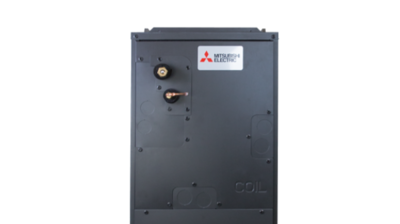

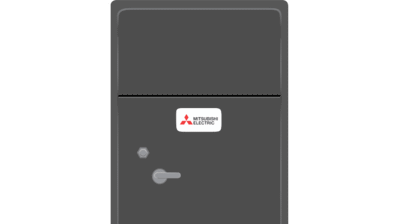

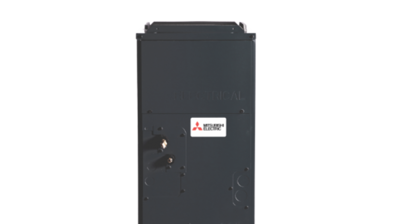

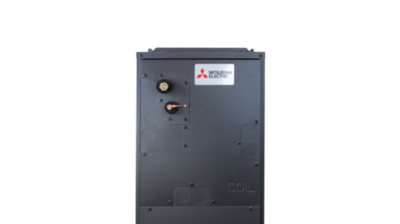

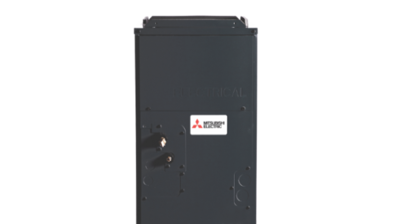

Our multi-position air handler provides the powerful, quiet and efficient cooling and heating solution your home or business deserves. Perfect for new builds or replacing your old furnace. Quality construction and reliable performance keeps everyone comfortable.

Energy Efficient

Now you can replace your existing furnace serving large areas of space with an efficient Mitsubishi Electric system.

Easy to Install

Designed to be easily disassembled and reassembled, it fits through tight openings and can be installed vertically or horizontally depending on your particular space.

Environmentally Friendly

One inch R4.2, fiberglass-free insulation reduces condensation and boosts efficiency.

Multi-flow vanes allow for fast warm up and efficient operation.

Healthier Indoor Air

Sophisticated multi-part filtration systems reduce contaminants such as allergens, viruses and bacteria from the air.

Performance in Cold Climates

Hyper-Heating INVERTER^® technology provides exceptional performance down to -13° F outdoor ambient, with 100% heating capacity at 5° F outdoor ambient.

Whisper-Quiet Operation

Both the indoor and outdoor units are extremely quiet. Indoor units operate as low as 19 dB(A) - that's quieter than a whisper.

COOL (BTU/H) : 12,000

HEAT (BTU/H) : 13,500

SEER : 17

HSPF : 10

ENERGY STAR^® : YES

SOUND LEVEL AS LOW AS DB(A) : 29

I-SEE SENSOR™ OPTION : NO

CONTROL OPTIONS AVAILABLE : ALL

FILTER TYPE : F

FAN SPEEDS : 3 Speed

TIMER : Varies by control

STATIC PRESSURE EXTERNAL UP TO (IN.WG) : 0.8

COOL (BTU/H) : 18,000

HEAT (BTU/H) : 22,800

SEER : 17.6

HSPF : 10.4

ENERGY STAR^® : YES

SOUND LEVEL AS LOW AS DB(A) : 33

I-SEE SENSOR™ OPTION : NO

CONTROL OPTIONS AVAILABLE : ALL

FILTER TYPE : F

FAN SPEEDS : 3 Speed

TIMER : Varies by control

STATIC PRESSURE EXTERNAL UP TO (IN.WG) : 0.8

COOL (BTU/H) : 24,000

HEAT (BTU/H) : 25,000

SEER : 18.0

HSPF : 10.4

ENERGY STAR^® : YES

SOUND LEVEL AS LOW AS DB(A) : 38-34-30

I-SEE SENSOR™ OPTION : NO

CONTROL OPTIONS AVAILABLE : ALL

FILTER TYPE : F

FAN SPEEDS : 3 Speed

TIMER : Varies by control

STATIC PRESSURE EXTERNAL UP TO (IN.WG) : 0.30-0.50-0.80

COOL (BTU/H) : 27,000

HEAT (BTU/H) : 30,000

SEER : 18.0

HSPF : 13.6

ENERGY STAR^® : YES

SOUND LEVEL AS LOW AS DB(A) : 40-46-32

I-SEE SENSOR™ OPTION : NO

CONTROL OPTIONS AVAILABLE : ALL

FILTER TYPE : F

FAN SPEEDS : 3 Speed

TIMER : Varies by control

STATIC PRESSURE EXTERNAL UP TO (IN.WG) : 0.30-0.50-0.80

COOL (BTU/H) : 33,000

HEAT (BTU/H) : 33,500

SEER : 16.0

HSPF : 11.7

ENERGY STAR^® : NO

SOUND LEVEL AS LOW AS DB(A) : 43-39-35

I-SEE SENSOR™ OPTION : NO

CONTROL OPTIONS AVAILABLE : ALL

FILTER TYPE : F

FAN SPEEDS : 3 Speed

TIMER : Varies by control

STATIC PRESSURE EXTERNAL UP TO (IN.WG) : 0.30-0.50-0.80

COOL (BTU/H) : 12,000

HEAT (BTU/H) : 14,000

SEER : 21.4

HSPF : 10

ENERGY STAR^® : NO

SOUND LEVEL AS LOW AS DB(A) : 24

I-SEE SENSOR™ OPTION : NO

CONTROL OPTIONS AVAILABLE : ALL

FILTER TYPE : F

FAN SPEEDS : 3 Speed

TIMER : Varies by control

STATIC PRESSURE EXTERNAL UP TO (IN.WG) : --

COOL (BTU/H) : 18,000

HEAT (BTU/H) : 19,000

SEER : 20.2

HSPF : 10

ENERGY STAR^® : NO

SOUND LEVEL AS LOW AS DB(A) : 28

I-SEE SENSOR™ OPTION : NO

CONTROL OPTIONS AVAILABLE : ALL

FILTER TYPE : F

FAN SPEEDS : 3 Speed

TIMER : Varies by control

STATIC PRESSURE EXTERNAL UP TO (IN.WG) : --

COOL (BTU/H) : 24,000

HEAT (BTU/H) : 26,000

SEER : 20.5

HSPF : 9.3

ENERGY STAR^® : NO

SOUND LEVEL AS LOW AS DB(A) : 30

I-SEE SENSOR™ OPTION : NO

CONTROL OPTIONS AVAILABLE : ALL

FILTER TYPE : F

FAN SPEEDS : 3 Speed

TIMER : Varies by control

STATIC PRESSURE EXTERNAL UP TO (IN.WG) : --

COOL (BTU/H) : 30,000

HEAT (BTU/H) : 32,000

SEER : 19

HSPF : 10

ENERGY STAR^® : NO

SOUND LEVEL AS LOW AS DB(A) : 30

I-SEE SENSOR™ OPTION : NO

CONTROL OPTIONS AVAILABLE : ALL

FILTER TYPE : F

FAN SPEEDS : 3 Speed

TIMER : Varies by control

STATIC PRESSURE EXTERNAL UP TO (IN.WG) : --

COOL (BTU/H) : 36,000

HEAT (BTU/H) : 38,000

SEER : 19.3

HSPF : 9.5

ENERGY STAR^® : NO

SOUND LEVEL AS LOW AS DB(A) : 30

I-SEE SENSOR™ OPTION : NO

CONTROL OPTIONS AVAILABLE : ALL

FILTER TYPE : F

FAN SPEEDS : 3 Speed

TIMER : Varies by control

STATIC PRESSURE EXTERNAL UP TO (IN.WG) : --

COOL (BTU/H) : 42,000

HEAT (BTU/H) : 46,000

SEER : 18

HSPF : 9.3

ENERGY STAR^® : NO

SOUND LEVEL AS LOW AS DB(A) : 34

I-SEE SENSOR™ OPTION : NO

CONTROL OPTIONS AVAILABLE : ALL

FILTER TYPE : F

FAN SPEEDS : 3 Speed

TIMER : Varies by control

STATIC PRESSURE EXTERNAL UP TO (IN.WG) : --

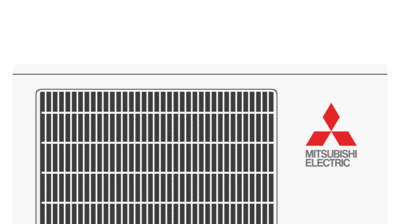

Have a spot in your house that is always too hot? A single-zone cooling system can efficiently bring it into your comfort zone.

Energy Efficient

INVERTER-driven compressor technology uses the minimum amount of energy needed to maintain ideal comfort.

Whisper-Quiet Operation

Units operate as quietly as a restaurant conversation.

Designed to Save Space

With their narrow profile, these systems are well-suited for tight spaces.

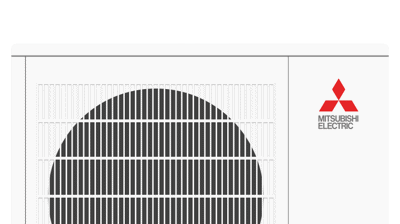

Keep a single room comfortable year round with an efficient single-zone cooling and heating solution.

Energy Efficient

INVERTER-driven compressor technology uses the precise amount of energy needed to cool or heat to your personal comfort.

Available Hyper-Heat

Provides outstanding heating performance, even in extreme cold. (Select models only)

Environmentally Friendly

90% of system components are recyclable and R410A refrigerant has zero Ozone Depletion Potential (ODP).

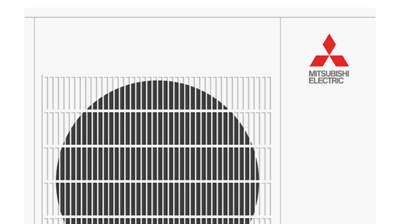

Experience efficient whole-home comfort with multi-zone systems that can address the comfort needs of everyone and every room in your home.

Multiple Zones, One System

With one outdoor unit connected to up to eight indoor units, these systems can keep your whole home comfortable.

Zone Comfort

Control each zone individually to meet the personal comfort needs of room occupants.

Energy Efficient

INVERTER-driven compressor technology uses the precise amount of energy needed to maintain comfort conditions.

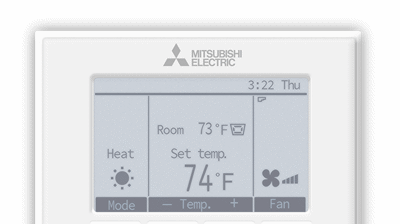

Manage your home's cooling and heating with easy-to-use wall-mounted controllers that give you total control over your personal comfort.

Control Multiple Indoor Units

Manage from one to 16 indoor units from one wall-mounted controller.

Set Temperature Ranges

Set custom ranges for cooling or heating easily with straightforward, user-friendly programming.

Multi-Way Airflow

Select control models can adjust the vanes of your indoor units to direct air flow where it is most needed.

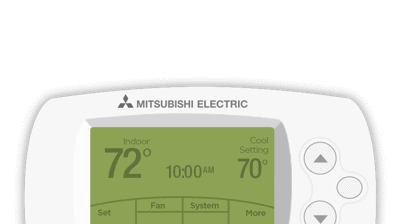

Manage your home's cooling and heating with wireless controls that can mount anywhere and make installation a snap.

Pre-Programmed

Controller comes pre-programmed for your convenience. All you have to do is set the time and day.

Set Temperature Ranges

Set custom ranges for cooling or heating easily with straightforward, user-friendly programming.

Filter Reminders

Set reminders to change indoor unit filters at 100 or 2,500 hours of operation.

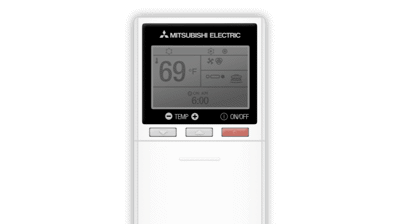

Manage your home's cooling and heating from the palm of your hand.

Smart Set

Program multiple settings into one quick-press feature.

Manage Modes

Change mode from Heat, Cool, Auto or Dry to fit your personal comfort.

Multi-Way Airflow

Controls can adjust the vanes of your indoor units to direct air flow where it is most needed.

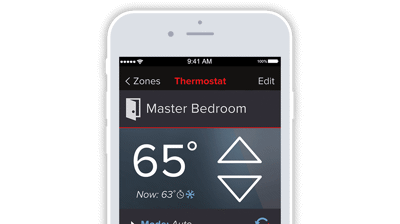

Whether you're out for the day or the month, whether you want to cool down or warm up, kumo cloud^® gives you control no matter where you are.

Anytime, Anywhere Control

kumo cloud^® gives you control from any smartphone, tablet, or web browser.

Whole System Control

Through the user interface on a smartphone, tablet or web browser, a homeowner can control an entire Diamond Comfort System^®.

Trouble Shooting

If your system isn't working properly, you can determine basic problems through the kumo cloud^® error alerts.
